MD300-C5 Paediatric Finger Pulse Oximeter - Bear

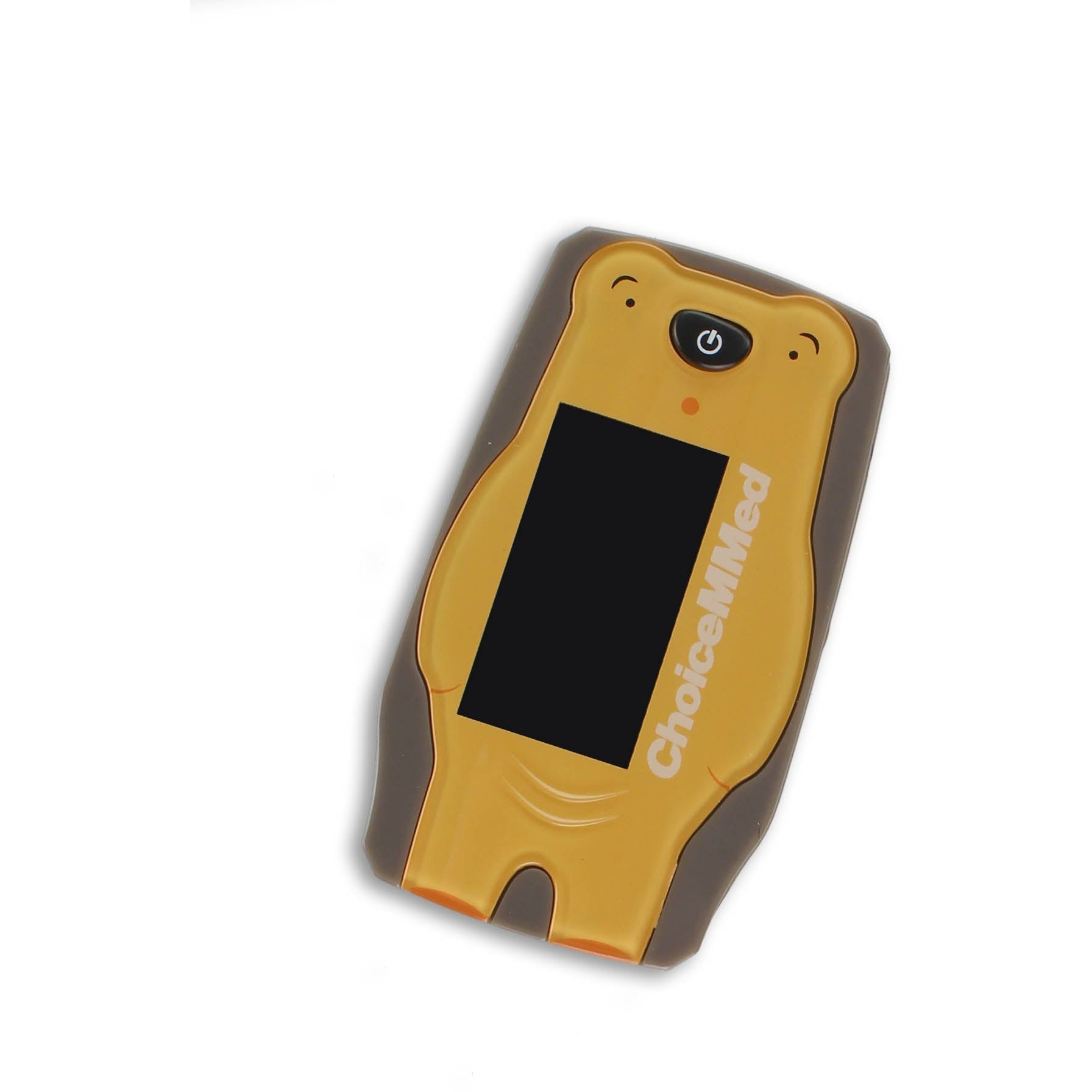

Paediatric Finger Pulse Oximeter with Child-Friendly Bear Design

Ultra compact paediatric finger oximeter with OLED display.
• Specially designed for paediatric patients
• Low cost
• Clear, bright colour OLED display
• Display can be viewed in 4 rotations
• Adjustable brightness; 10 levels
• Pleth waveform, displayed in 2 formats
• Signal strength indicator
• Easy to use; 1-button operation
• Automatic power-off when finger is removed

MD300C5 SERIES PULSE OXIMETERS ARE SUITABLE FOR CHILDREN 3 YEARS AND OLDER
MINIMUM THICKNESS REQUIRED FOR USE IS BETWEEN 5MM-19MM TO BE READ BY THE DEVICE

SpO2
Range: 70% - 99%.
Resolution: 1%.
Accuracy: 80% - 99%; +/- 2%.
70% - 80%; +/- 2%.

Pulse Rate
Range: 30 - 235 bpm.
Accuracy: +/- 2 bpm.

Battery Type
2x AAA / LR03 / MN2400 1.5V alkaline batteries.

Battery Life
30 hours continuous operation.
Automatically powers off when finger is removed for longer than 8 seconds.

Operating temperature
5° C to 40° C.

Weight (including batteries)
42 g.

Dimensions
50 mm (l) x 28 mm (w) x 28 mm (h).

CE Classification
IIa.

Includes:
• Silicone protective cover.
• Lanyard.
• Hinged storage case.
• Batteries.
• Operator’s Manual.
