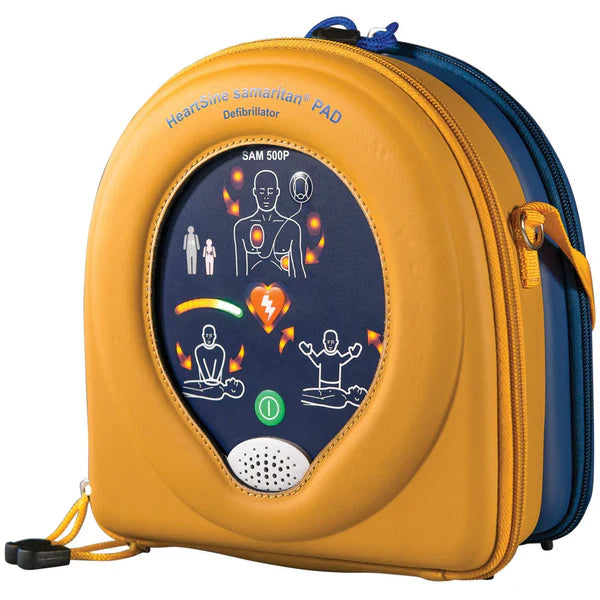

HeartSine Samaritan PAD 500P Semi Automatic AED Defibrillator with Carry Case

Regardless of whether it is a layperson or a professional rescuer, AHA/ERC Guidelines place a greater emphasis on the importance of effective CPR in increasing survival rates after out-of-hospital cardiac arrest. The HeartSine® Samaritan® PAD 500P defibrillator with integrated CPR Advisor™ is the most innovative device available to support these guidelines, giving rescuers feedback on the effectiveness of their CPR efforts – in real time. Please note this is supplied with a carry case.

Compact in Size. Big on Ability

• Built-in confidence. The Samaritan PAD 500P integrated CPR Advisor uses an Impedance Cardiogram (ICG) to assess the effectiveness of the CPR and give the rescuer feedback on compressions: “Push Harder,” “Push Faster,” “Push Slower” or reassurance that they are performing “Good Compressions.”
• User-friendly. Easy-to-understand visual and voice prompts guide a user through the entire process.
• Compact and lightweight. Up to 56% smaller than other AEDs on the market and weighs only 2.4 lbs (1.1 kg).
• Highest level of dust/moisture protection. The Samaritan PAD has a rating of IP56, providing the SAM 500P defibrillator with the highest level of protection from dust or moisture ingress in the industry.
• Durable. The Samaritan PAD 500P resists shock and vibration and carries an eight-year unit warranty that demonstrates the reliability of this quality unit.
• Advanced technology. The Samaritan PAD 500P utilizes proprietary electrode technology, advanced and stable firmware, and proprietary SCOPE™* Biphasic Technology (an escalating and low-energy waveform that automatically adjusts for patient impedance differences) to assess rhythm and maximize effective shock delivery if necessary.

Easy-to-Follow Visual and Voice Prompts

• User-friendly. The Samaritan PAD 500P features easy-to understand visual and voice prompts that guide a user through the process. Three large, easy-to-see icons facilitate the rescue process: “Attach pads,” “Do not touch the patient,” and “It is safe to touch the patient”.

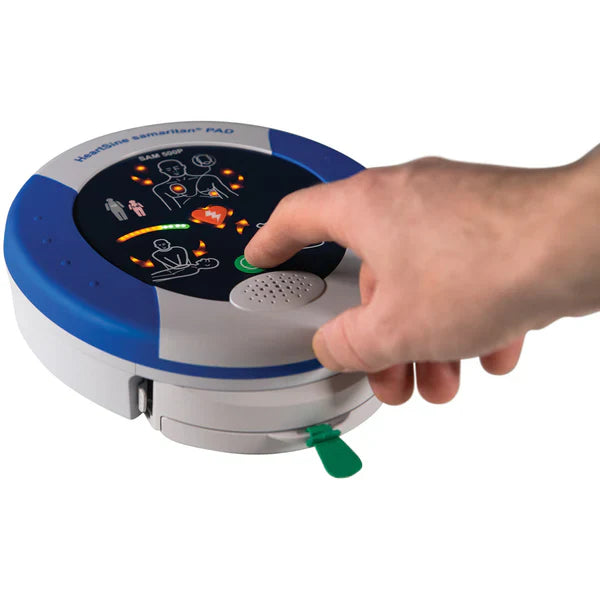

• Two-button operation. Only two buttons, ON/OFF and SHOCK, are required, providing straightforward operation.
• Always ready. A System Status Ready Indicator flashes to show that the complete system is operational and ready for use. Device automatically runs self check each week.

Real Economy for the Real World

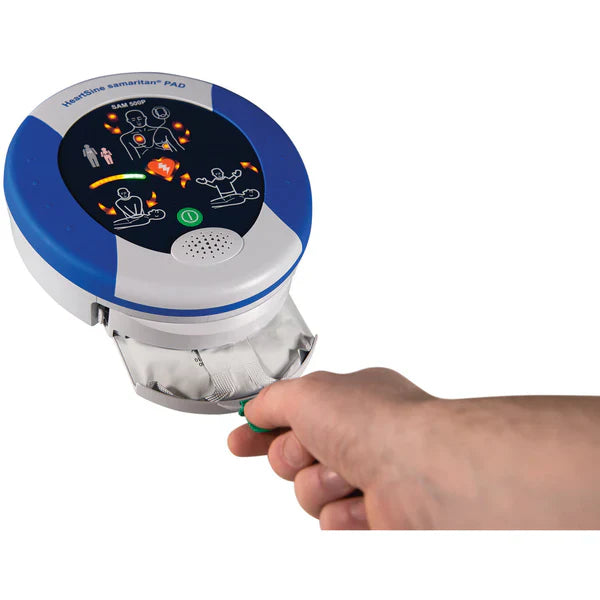

• Two parts, one expiration date. Pad-Pak™ cartridge combines battery and electrode pads, with one expiration date to monitor.
• Low cost of ownership. Cartridge has a shelf life of 4 years from date of manufacture, offering significant savings over other defibrillators that require separate battery and pad units.
• Protects both adults and children. The HeartSine PAD’s built-in intelligence and unique Pediatric Pad-Pak, which is available for 1-8 years of age (<25 kg or 55 lbs), ensure the appropriate energy level is delivered for children. CPR Advisor is automatically turned off when a Pediatric Pad-Pak is used.
• Field upgradeable. Easily upgraded in the field to the latest AHA/ERC guidelines.

If you're not sure which model is right for you, read our brief guide to the HeartSine range to see why we think these are some of the best AEDs out there.

Specifications

Energy Selection

• Adult: Shock 1: 150J; Shock 2: 150J; Shock 3: 200J
• Pediatric: Shock 1: 50J; Shock 2: 50J; Shock 3: 50J

Charging Time

• New Battery: Typically 150J in < 8 seconds, 200J in < 12 seconds
• After Six Discharges: Typically 150J in < 8 seconds, 200J in < 12 seconds

Event Documentation

• Type: Internal Memory
• Memory Capacity: 90 minutes of ECG (full disclosure) and event/incident recording
• Playback Capabilities: Custom USB cable directly connected to PC and Saver™ EVO Windows-based data review software

Pad-Pak — Electrode and Battery Cartridge

• Shelf Life: Four years from manufacture date
• Weight: 0.44 lbs (0.2 kg)
• Size: 3.93 in x 5.24 in x .94 in (10 cm x 13.3 cm x 2.4 cm)
• Battery Type: Lithium Manganese Dioxide (LiMnO2)
• Capacity: > 60 shocks at 200J
• 18V, 1.5 Amp Hrs

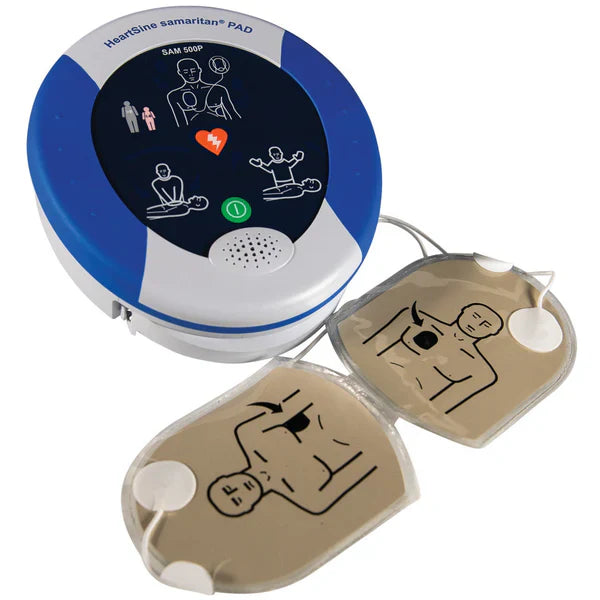

• Electrodes: HeartSine Samaritan disposable defibrillation pads are supplied as standard with each device
• Placement: Anterior-lateral (Adult); Anterior-posterior (Pediatric)
• Active Gel Area: 15.5 in2 (100 cm2)
• Cable Length: 3.3 feet (1 meter)
